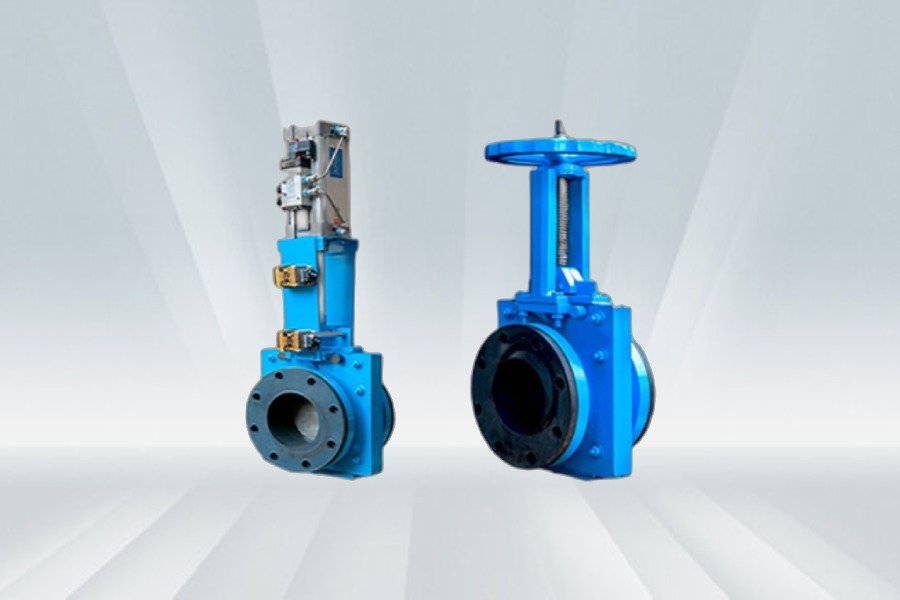

Knife Gate Valve
Propeller Pumps is one of the leading manufacturers, exporters and suppliers of Knife Gate Valves in India and is exporting worldwide including UAE, Saudi Arabia, Singapore, Indonesia, Philippines, Egypt, Ethiopia, Nigeria, Kenya, Russia, Uzbekistan, Kazakhstan and across the globe. Manufactured at our facility in Ahmedabad, Gujarat, our knife gate valves are precision engineered for demanding industrial environments where conventional valves fail to perform reliably.
What Is a Knife Gate Valve?
A knife gate valve is a specialised type of industrial valve designed to regulate or completely shut off the flow of fluid or bulk material passing through a pipeline. Its defining feature is a flat, rectangular blade or gate that functions much like a knife, cutting cleanly through the medium in the pipeline to achieve either full flow or complete isolation.
Unlike conventional gate valves, knife gate valves are engineered specifically for media containing suspended solids, fibrous particles, pulp, slurry, or other challenging substances that would clog or damage standard valves. The blade slices through the material without allowing buildup at the seating area, ensuring consistent and reliable shutoff performance even after prolonged operation in harsh conditions.
The valve body can be manufactured in cast iron, ductile iron, carbon steel, stainless steel, or plastic, depending on the nature of the process fluid. Similarly, the gate or blade material is selected based on the application, with options including stainless steel, polyurethane, and rubber for varying levels of corrosion resistance and wear performance.
Types of Knife Gate Valve Offered by Propeller Pumps
Propeller Pumps supplies both uni directional and bi directional knife gate valves to suit the specific requirements of each installation:
Uni Directional Knife Gate Valve
Designed for flow in a single direction. The sealing mechanism is optimised for pressure applied from one side, making it well suited to applications with consistent, unidirectional pipeline flow such as wastewater discharge lines and slurry transport pipelines.
Bi Directional Knife Gate Valve
Engineered to provide effective shutoff regardless of the direction of flow. The double seated design ensures bubble tight sealing from either side, making it the preferred choice for applications where flow direction may reverse or where pipeline pressure can act from either upstream or downstream.
Both uni directional and bi directional knife gate valve types are suited for handling non flammable viscous fluids, wastewater, clean water, slurries and heavy oils.
Technical Specifications of Knife Gate Valve
| Minimum Order Quantity | 01 Piece |
|---|---|
| Size Range | DN 50 (2 inch) to DN 1200 (48 inch) |
| Applicable Standards | AWWA C520-14 and MSS SP-81 |
| Pressure Rating | PN3 (45 PSI), PN6 (90 PSI) and PN10 (150 PSI) depending upon housing material, primarily for liquid applications |
| Temperature Range | Minus 20 degrees C to 250 degrees C |
| Flange Drilling | ASME B16.5 / ASME B16.47 #150 and BS EN 1092 PN 10 / PN 16 |
| Mode of Operations | Manual, chain wheel, pneumatic actuator, electric actuator and hydraulic actuator |
| Port of Dispatch | Ahmedabad, India |
| Production Capacity | As per order |
| Delivery Time | As per order |
| Packaging Details | Export and cargo packing |
Key Features of Knife Gate Valves
- Body Design: Knife gate valves are constructed with a robust one piece body that enhances structural integrity and service life. Available in cast iron, ductile iron, stainless steel, and various engineering alloys, the body material is selected to match the chemical compatibility, pressure, and temperature requirements of the intended application.
- Blade Design: The blade is flat and rectangular, precision machined to produce a clean cutting action that slices through solid laden or fibrous fluid streams without causing clogging or blocking at the valve seat. The blade is designed for durability and sharpness retention over extended service cycles, maintaining shutoff performance across thousands of operating cycles.
- Bonnet Design: The bonnet assembly protects the internal working components of the valve from contamination and mechanical damage. It is engineered to maintain a consistent and reliable seal at the packing area, preventing fluid bypass around the stem and reducing the risk of environmental contamination from process media.
- Seal Design: The sealing arrangement incorporates elastomeric seals typically manufactured from rubber or silicone. These materials provide the flexibility needed to conform to minor surface irregularities while delivering a durable and leak resistant barrier against process fluids, even in applications involving abrasive or chemically aggressive media.
- Actuation Options: Knife gate valves from Propeller Pumps are available with multiple actuation methods. Manual handwheel operation is standard, while pneumatic actuators and electric actuators are available for automated and remote controlled installations. Hydraulic actuation is also supported for high pressure or large bore applications. These actuators can be integrated with distributed control systems and SCADA platforms for fully automated pipeline management.
- Flow Characteristics: The full bore opening of a knife gate valve creates minimal flow restriction, enabling it to handle large volumetric flows of fluid and solid laden substances efficiently. The bi directional design variant allows effective flow regulation in both pipeline directions, adding operational flexibility particularly in recirculation and reversible pump systems.
Advantages of Knife Gate Valves
| Knife Gate Valves Advantage | Practical Benefit |
|---|---|
| Durability | Withstands abrasive and corrosive media for long service life |
| Versatility | Handles liquids, gases, slurries, high temperature and high pressure applications |
| Ease of Maintenance | Simple design with few moving parts reduces repair frequency and downtime |
| Reliability | Anti clog blade design minimises unplanned stoppages |
| Cost Effectiveness | Lower capital cost vs comparable valve types with equivalent performance |
| Bi directional Flow | Effective shutoff regardless of upstream or downstream pressure |
| Easy to Automate | Compatible with pneumatic, electric and hydraulic actuators for remote operation |
Applications of Knife Gate Valves
Knife gate valves from Propeller Pumps are deployed across a broad spectrum of industries wherever pipelines carry solids laden, fibrous, viscous, or chemically aggressive media. Principal application areas include:
- Mining: Flow control of slurry pipelines handling abrasive ore concentrates, tailings, and acidic or alkaline process streams. The blade construction resists the wear caused by hard particulates in mine process water.
- Wastewater Treatment: Isolation and flow regulation in sewage collection, primary treatment, sludge recirculation, and effluent discharge pipelines. The valve handles high viscosity liquids and prevents clogging in sludge lines.
- Pulp and Paper Production: Control of fibre laden slurry streams in stock preparation, white water recovery, and pulp transfer pipelines. The cutting action of the blade prevents fibre mat buildup at the valve seat.
- Power Generation: Regulation of steam, cooling water, ash slurry, and process fluid pipelines in thermal power stations. Suitable for high temperature and high pressure service conditions where other valve types are impractical.
- Food Processing: Flow control of liquid and slurry streams containing food products. Available in food safe materials and designed for hygienic cleaning to prevent cross contamination between process batches.
- Chemical Processing: Isolation of liquid and slurry streams containing organic chemicals, solvents, caustics, and other aggressive process media. Body and blade materials are selected for full chemical compatibility with process fluids.
Export Markets
Propeller Pumps exports knife gate valves from Ahmedabad, Gujarat to clients across UAE, Saudi Arabia, Singapore, Indonesia, Philippines, Egypt, Ethiopia, Nigeria, Kenya, Russia, Uzbekistan, Kazakhstan and across the globe. All export shipments are packed to international cargo standards to ensure product integrity during transit.
