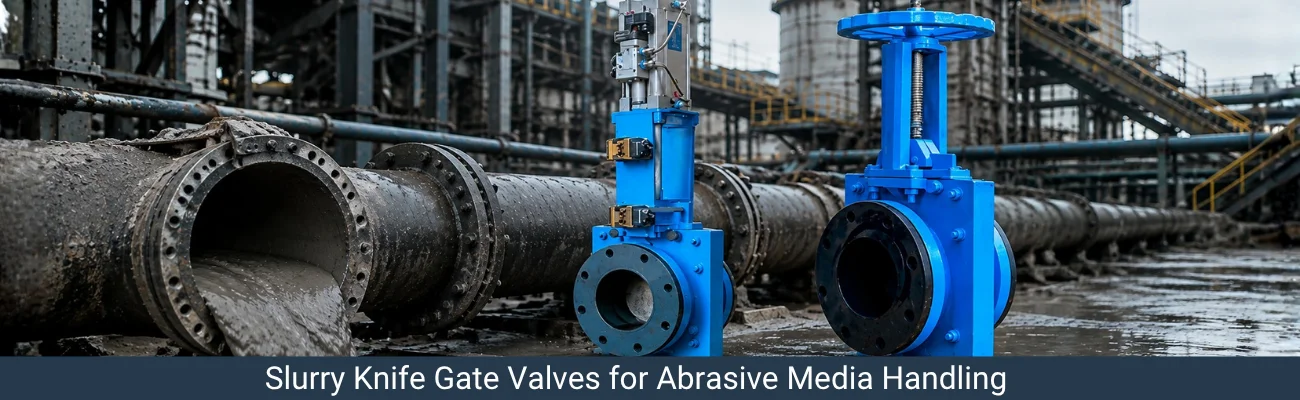

Slurry Knife Gate Valves: Design, Applications and Selection Guide
Slurry handling puts unique demands on isolation valves, since the media combines liquid flow with abrasive solid particles that can quickly wear out a poorly designed valve. A slurry knife gate valve is purpose built to withstand this environment while still delivering reliable shut off. This guide covers the design features, application areas, and selection criteria that matter most when specifying a slurry knife gate valve.
What Is a Slurry Knife Gate Valve?
A slurry knife gate valve is a knife gate valve engineered specifically for services carrying a mixture of liquid and solid particles. It typically features a reinforced gate, an abrasion resistant seat, often rubber lined, and a body designed to minimize turbulence and settling that could accelerate wear at the seating surface.
What Is Slurry and Why Does It Require Special Valves?
Slurry is a suspension of solid particles in a liquid carrier, common in mining, mineral processing, power plant ash handling, and wastewater sludge systems. The abrasive nature of suspended solids causes accelerated wear on standard valve seats and gates, which is why slurry service requires valves built with hardened materials, reinforced seats, and geometry that minimizes particle impingement at the sealing surface.
Email Us !
How Does a Slurry Knife Gate Valve Work?
- The gate slides vertically through a slot in the valve body, cutting directly through the slurry stream.
- As the gate lowers, its edge compresses against the seat, displacing solids away from the sealing zone.
- A fully closed gate creates a positive shut off even with abrasive particles present in the line.
- When opened, the gate retracts fully, leaving an unobstructed bore that resists solids buildup.
Key Design Features of Slurry Knife Gate Valves
- Reinforced gate construction, often hardened stainless steel, to resist erosion from suspended particles.
- Rubber lined or elastomer seat design that compresses around the gate edge to maintain a seal despite particle interference.
- Extended bonnet or packing gland to protect the actuator stem from abrasive buildup.
- Wide, uniform bore to minimize turbulence and reduce localized wear at the seat.
- Corrosion resistant body materials for slurries with chemically aggressive carrier fluids.
Abrasion and Erosion Resistance
Abrasion resistance is the single most important performance factor for a slurry knife gate valve. Seat materials such as natural rubber, neoprene, or polyurethane are selected for their ability to absorb particle impact without rapid degradation. Gate surfaces are often hardened or coated to resist the cutting action of sharp mineral particles moving at velocity through the valve bore.
Role of the Knife Gate Blade in Slurry Handling
The knife edge of the gate is what allows the valve to cut cleanly through settled or suspended solids on every closure, preventing the jamming that would occur with a flat faced gate valve or ball valve in the same service. A sharp, well maintained gate edge is essential to consistent sealing performance and reduced actuator load over the life of the valve.
Seat and Sealing Options for Slurry Service
- Standard elastomer seats, such as EPDM or NBR, for moderate abrasion and general slurry duty.
- Rubber lined seats, offering higher abrasion resistance for continuous heavy slurry service.
- Metal seated designs, used in high temperature or highly abrasive applications where elastomers would degrade quickly.
- PTFE lined seats, applied where chemical compatibility with the slurry carrier fluid is a concern in addition to abrasion resistance.
Rubber Lined Knife Gate Valves for Abrasive Slurries
Rubber lined knife gate valves use a continuous rubber lining across the seat and internal body surfaces to absorb the impact of abrasive particles and extend service intervals. This construction is particularly common in tailings, dredging, and mineral concentrate lines where particle size and velocity would otherwise cause rapid wear on an unlined valve body.
Unidirectional vs Bidirectional Slurry Knife Gate Valves
For slurry lines with a single, consistent flow direction, such as pump discharge to a thickener or tailings pond, a unidirectional slurry knife gate valve provides a tighter, more cost effective seal. Where the slurry line includes recirculation or reverse flow during cleanout, backwashing, or maintenance cycles, a bidirectional design is the more reliable choice, since it maintains sealing performance regardless of flow orientation.
Manual vs Pneumatic vs Electric Slurry Knife Gate Valves
| Actuation Type | Best Suited For | Key Consideration |
|---|---|---|
| Manual | Infrequent isolation, non critical lines | Lowest cost, requires operator access |
| Pneumatic | Frequent cycling, standard slurry duty | Requires compressed air supply |
| Electric | Remote control, precise positioning | Requires stable electrical supply |
| Hydraulic | Large valves, high resistance slurry | Highest force output, needs power unit |
Slurry Knife Gate Valve Applications in Mining
Mining operations use slurry knife gate valves throughout the process circuit, from crusher discharge and grinding mill feed to flotation, thickening, and tailings disposal lines. Rubber lined, unidirectional valves with pneumatic or hydraulic actuation are common in this sector due to the continuous, abrasive, high volume flow typical of mining slurries.
Slurry Valve Applications in Mineral Processing
In mineral processing plants, slurry knife gate valves isolate individual process stages, allowing maintenance or cleaning without shutting down the entire circuit. Seat and gate material selection in this sector often depends on the specific ore type and particle hardness, since silica bearing slurries are considerably more abrasive than softer mineral suspensions.
Slurry Handling in Power and Industrial Plants
Power plants use slurry knife gate valves in bottom ash and fly ash handling systems, where high temperature and abrasive particulate content demand hardened seat and gate materials. General industrial plants use similar valves in process slurry lines, scrubber circuits, and wastewater sludge systems, adapting body material and seat design to the specific chemical and abrasive characteristics of each application.
Call Now !
How to Select the Right Slurry Knife Gate Valve
- Determine the particle size, hardness, and concentration of the slurry to assess abrasion severity.
- Select a seat material rated for the abrasion level, from standard elastomers to rubber lining or metal seats.
- Confirm whether flow direction is fixed or reversible to choose between unidirectional and bidirectional designs.
- Match the body material to the chemical properties of the carrier fluid.
- Choose an actuation method based on cycle frequency, available utilities, and force requirements.
- Verify the valve design complies with applicable standards such as MSS SP 81.
Maintenance Tips for Slurry Knife Gate Valves
- Inspect the seat and gate edge regularly for wear, especially in continuous duty slurry lines.
- Flush the valve cavity periodically to prevent settled solids from accumulating around the gate.
- Check packing gland tightness to prevent slurry infiltration into the stem area.
- Monitor actuator performance for signs of increased load, which can indicate gate or seat wear.
- Replace rubber linings before they reach full wear through, to avoid unplanned failure during operation.
Slurry Knife Gate Valve Selection Checklist
- Confirmed particle size and abrasion level of the slurry.
- Selected seat material rated for the expected wear conditions.
- Verified flow direction and chosen unidirectional or bidirectional configuration accordingly.
- Matched body material to chemical compatibility requirements.
- Selected actuation type based on automation and force needs.
- Reviewed compliance with relevant valve design standards.
A properly specified slurry knife gate valve, matched in seat material, gate hardness, and flow configuration to the actual process conditions, delivers longer service life and more reliable isolation than a generic valve selection, reducing both maintenance frequency and unplanned downtime across mining, mineral processing, and industrial slurry systems.
