Axial Flow Pumps

Propeller Pumps is one of the leading manufacturers, exporters and suppliers of Axial Flow Pumps designed to deliver exceptional performance across demanding industrial environments.

Our axial flow pumps are engineered for applications requiring high flow capacity at low discharge heads, particularly where corrosive chemicals, abrasive slurries, or viscous liquids are involved. Recognised for their mechanical reliability and unmatched build quality, our pumps have earned a strong reputation among plant engineers, contractors, and procurement teams across India and internationally.

Enquire Now Download

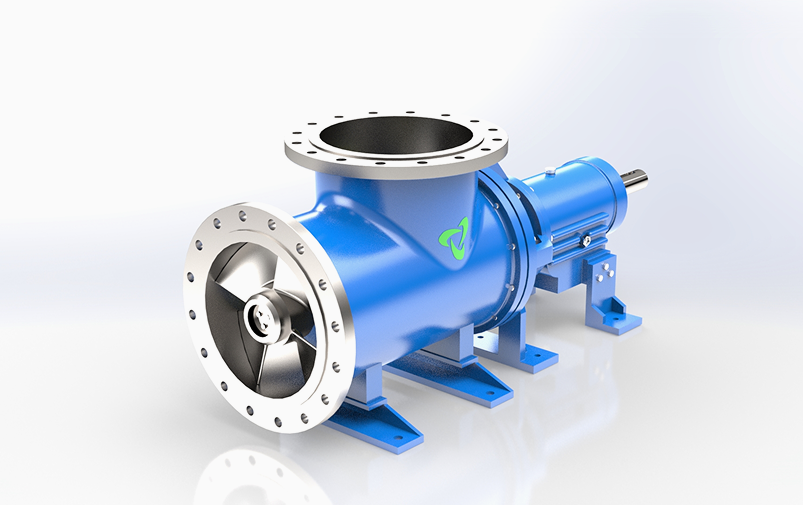

Horizontal Axial Flow Pump

The Horizontal Axial Flow Pump from Propeller Pumps delivers precisely what demanding industrial processes require: long operational life, minimal maintenance, and uninterrupted performance across a wide range of fluid types.

Engineered with advanced propeller design technology, this pump excels in every high-flow, low-head pumping scenario – whether the application involves clean water, chemically aggressive solutions, or abrasive slurries.

Vertical Axial Flow Pump

The Vertical Axial Flow Pump by Propeller Pumps is a rugged, heavy-duty unit engineered for reliable operation across a wide variety of high-volume fluid movement applications where a vertical or submerged installation is required.

Designed to move large volumes of water or process fluid at low discharge pressures, it is the preferred choice for wet-pit, sump, and open-channel installations.

Key Design Features

Multiple Construction Back Pullout Casted & Fabricated
Multiple Option in casting Investment Cast & Sand Cast
Multiple Installation construction
Tapered bore stuffing box design for longest seal life
Multiple impeller selections for optimum performance & efficiency
Back Pullout construction as standard on size through 6”-30” (150mm to 750mm)
Fabricated construction as standard on size through 10”-42” (250mm to 1050mm)

Technical Specification

Available Model range in 6” to 42” (150mm to 1050mm)
Flow range capacities 100m³/hr to 14000m³/hr
Head Range from up to 9m
Temperature 180°C (350°F)
Material available in Cast Iron, Cast Steel, Stainless Steel (SS304, SS316, SS316L, SS304L, SS904L), Duplex & Super Duplex Steel ( CD3MN-4A, CD4MCUN-1A, CE3MN-5A), Alloy20(CN7M), Hast Alloys (C-276), Hast Alloy B, Titanium Gr.1 or Gr.2, Etc.

Applications

Chemical
Evaporators, ZLD and Crystallizer Circulation

Mining and Minerals
Phosphate, soda ash, potash and sodium chloride processing

Petrochemical
Polypropylene reactors. Xylene

Pulp & Paper
Black liquor Evaporator, chlorine dioxide generators

Municipal
Sewage digesters & bio gas digesters

Food
Beet, Cane, Corn, Sugar Evaporators

General
Raw water Pumping, Flood Control, Marine Ballast Transfer

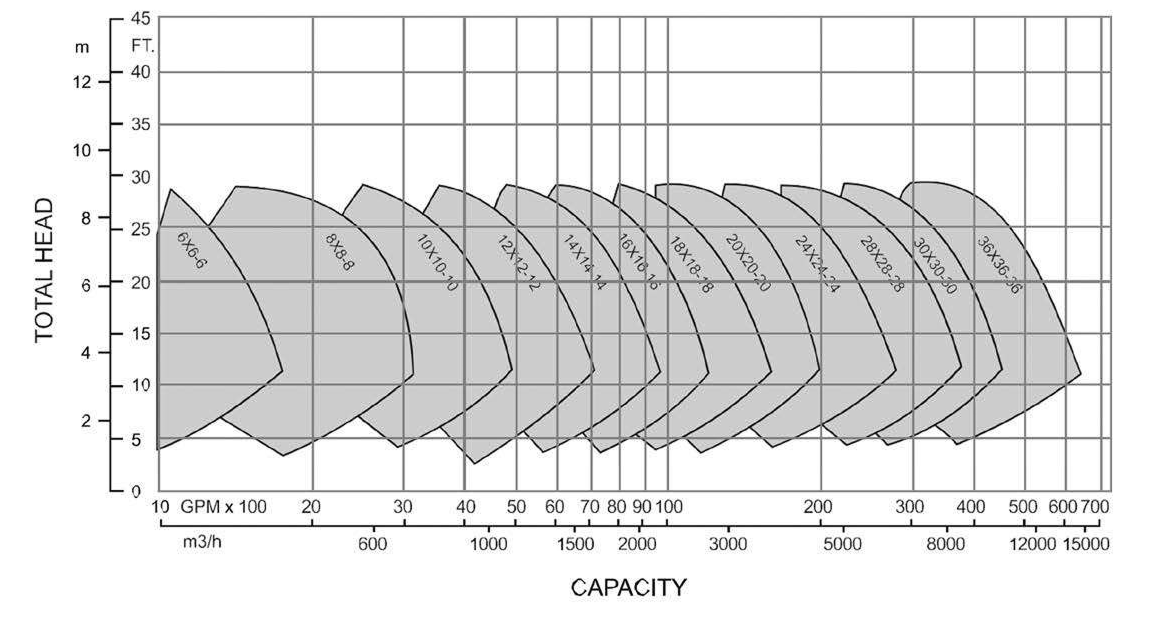

Hydraulic Selection

Key Performance Features of the Axial Flow Pump

The Axial Flow Pump has earned global recognition for consistent, flawless performance across diverse industrial services. A robust service and maintenance network ensures customers receive timely support regardless of their geographic location. The standout characteristics of this range include:

Durability & Long Service Life The AF model axial flow pump is built for continuous, long-term operation. Customers consistently report 5+ years of uninterrupted service without the need for major part replacement – a direct result of the quality materials and precision manufacturing standards applied at every stage of production.

High Hydraulic Efficiency The innovative propeller geometry employed in AF model pumps is engineered to extract maximum hydraulic efficiency at any given flow rate and head requirement. Each impeller is precisely matched to the application, ensuring optimal energy utilisation across the full operating range.

Versatile Installation Configurations The AF model is available in vertical, horizontal, inline, and open-top configurations, allowing it to integrate seamlessly into any plant design or civil structure. The wide range of propeller models ensures a suitable match for every installation requirement.

Low Maintenance Requirements Under normal operating conditions, the axial flow pump requires routine servicing only once every 2 to 3 years. Propeller Pumps supports this with a strong field service network capable of delivering timely, competent maintenance at any customer location.

Minimal Vibration & Environmental Friendliness The balanced design of the propeller pump ensures maximum output with minimal noise and vibration – making it suitable for environmentally sensitive installations and enclosed plant environments where noise levels must be controlled.

Handles Extreme & Hazardous Fluids The AF model is built to handle extreme temperature liquids, corrosive chemicals, and hazardous process fluids without performance degradation. Whether the application involves aggressive acids, abrasive slurries, or high-temperature process streams, this pump delivers reliable, unhindered operation.
