Chemical Process Pumps
The Centrifugal Chemical Process Pump is an ANSI B73.1 compliant end-suction, back pull-out process pump designed for reliable and easy maintenance. Its semi-open impeller provides effective handling of solids, stringy materials, and abrasives across demanding industrial applications. Available in a wide range of capacities, materials, pressures, and temperatures, it is suitable for chemical, petrochemical, water treatment, pharmaceutical, fertilizer, food, steel, power, sugar, and general process industries.
Key Design Features
- Propeller Pumps Centrifugal Process Pumps are as per ANSI B73.1 series
- End Suction Back Pull-out design for easy maintenance
- Volute type process pump casing
- Semi Open Impeller for solid handling, stringy material, abrasives
- Single/double mechanical seal or packing arrangement depending on service
- Larger range models are available to operate 50Hz and 60Hz
Technical Specification
- Available Model Delivery range up to 8” (200mm)
- Flow range capacities 1m³/hr to 500m³/hr
- Head Range from up to 150m
- Temperature 180°C (350°F)
- Pressure up to 16bar
- Material available in Cast Iron, Cast Steel, Stainless Steel (SS304, SS316, SS316L, SS304L, SS904L), Duplex & Super Duplex Steel ( CD3MN-4A, CD4MCUN-1A, CE3MN-5A), Alloy20(CN7M), Hast Alloys (C-276), Hast Alloy B, Etc.
Applications
Chemical
Chemical Process, Chemical Transfer, Circulation,
Chemical Process, Chemical Transfer, Circulation,
Petrochemical
Hydrocarbon transfer, utility service, process circulations
Hydrocarbon transfer, utility service, process circulations
Water treatment & Evaporator Plants
Evaporators, ZLD and Crystallizer Circulation
Evaporators, ZLD and Crystallizer Circulation
Oil & Gas Non API duties
Cooling water, utility water, Chemical injection/Transfer
Cooling water, utility water, Chemical injection/Transfer
Fertilizer plants
Ammonia-related utilities, water & chemical transfer
Ammonia-related utilities, water & chemical transfer
Pharmaceutical
Process liquids, solvents, cleaning/CIP systems
Process liquids, solvents, cleaning/CIP systems
Food & beverages
Process water, cleaning liquids, compatible product transfer
Process water, cleaning liquids, compatible product transfer
Steel & Power Plants
Cooling water, Process water, service water, chemical systems
Cooling water, Process water, service water, chemical systems
Sugar & distillery
Process water, chemicals, condensate and utility services
Process water, chemicals, condensate and utility services
General
Raw water Pumping, Flood Control, Marine Ballast Transfer
Raw water Pumping, Flood Control, Marine Ballast Transfer

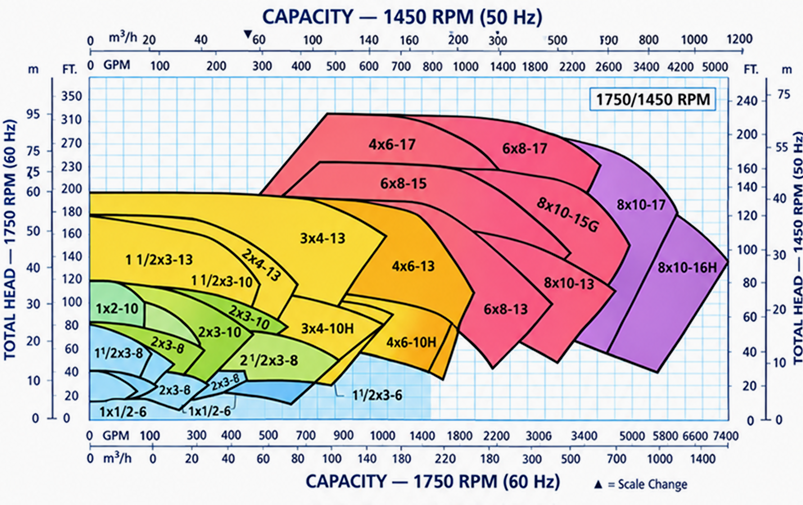

Hydraulic Selection
