Our expanded product range covers vertical sump pumps, SS centrifugal pumps, impeller pumps, pump impellers, pump housings, industrial pump components, pump accessories and self-priming centripetal pumps. Every product in this range is manufactured at our Ahmedabad facility using quality raw materials sourced from verified vendors, and each item is built to deliver consistent performance across the industrial applications for which it is specified.
Propeller Pumps is one of the leading manufacturers, exporters and suppliers of industrial pump spares, new pump variants and pump components in India, exporting to worldwide destinations including UAE, Saudi Arabia, Singapore, Indonesia, Philippines, Egypt, Ethiopia, Nigeria, Kenya, Russia, Uzbekistan, Kazakhstan and across the globe.

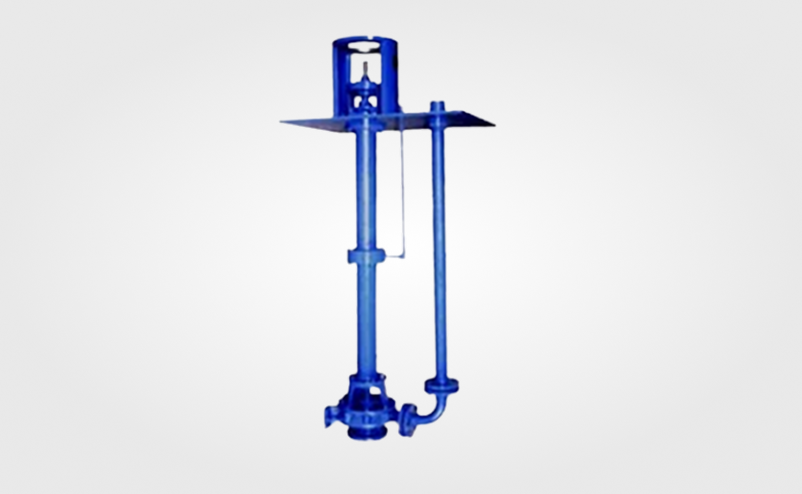

Our vertical sump pump is a single stage centrifugal pump built in a vertical orientation, with downward axial suction and radial discharge flanged directly to the discharge pipe. This vertical configuration makes it the ideal choice for lifting fluids from tanks, sumps, pits, rivers, lakes and water sheds where the pump motor must remain above the liquid surface while the wetted assembly operates fully submerged.
The shaft is supported from its upper end using grease lubricated ball bearings. Lateral shaft support is provided by radial bush bearings manufactured from anti friction material, ensuring smooth operation and minimal shaft deflection even under high side load conditions. This bearing arrangement extends seal life and reduces vibration throughout the operating range.
Materials of construction include carbon steel, stainless steel and alloy options, allowing these pumps to be specified for applications ranging from clean water circulation to acidic water handling, metal treatment plant process streams, chemical wastewater management and sewage treatment plant inlet works.

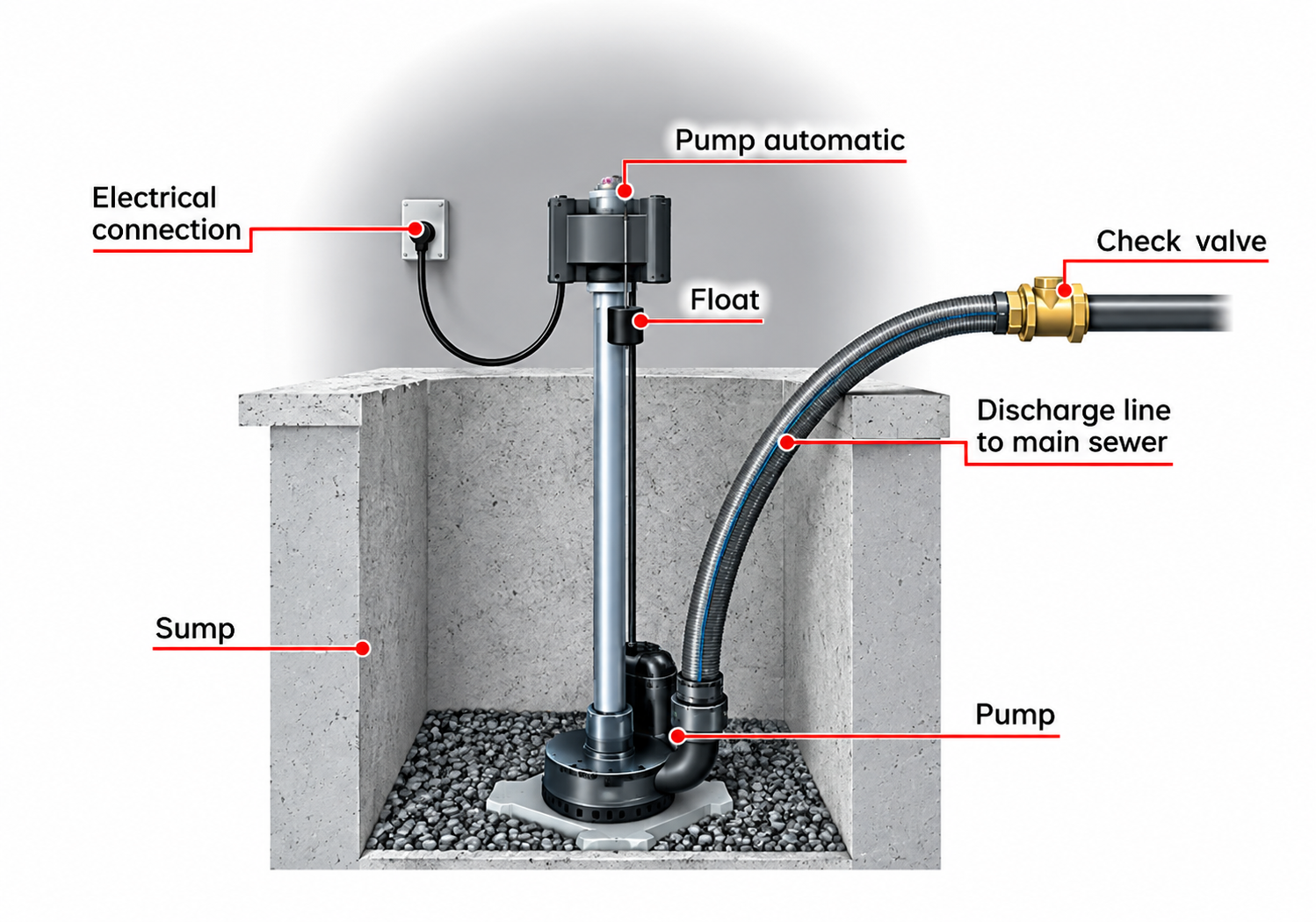

Our sump pump range is engineered for wide application duty in sectors where fluid handling conditions are harsh, variable or involve particulate laden liquids. Built using quality raw material sourced from trusted vendors, these pumps deliver robust and consistent performance in sewage and sludge service, industrial chemical transfer, pulp and paper plant operations, fertiliser handling, effluent management and underground solvent tank extraction.
The construction is designed for long service life with straight forward maintenance access, making them popular with plant managers seeking to minimise unplanned downtime. They are available in multiple sizes and dimensional configurations to match a broad range of installation requirements.
Our centrifugal pumps are available in back pull out construction, horizontal foot mounted single stage, end suction and top centreline discharge configurations. The manufacturing process conforms to DIN 24256 and ISO 2858 standards, and the design is generally compliant with API 610, making these pumps suitable for use in internationally specified process plant projects.
These centrifugal pumps cover a capacity range of up to 700 cubic metres per hour and a head range of up to 150 metres, giving them a wide operating window that spans general utility service through to demanding process plant duties.
Materials of construction: Cast Iron, Cast Steel, SS304, SS316, SS304L, SS316L, Alloy 20, CD4MCu, Hastelloy B and Hastelloy C
Application industries for our centrifugal pumps include chemical process plants, fertiliser manufacturing, bulk drugs and pharmaceutical production, heating and air conditioning systems, sugar processing, water supply and distribution, pulp and paper, cement plants, agriculture and textile, jet dyeing, organic and inorganic liquid refineries, dyes and intermediates, effluent treatment plants, cooling towers, firefighting systems, power generation, steel plants, thermic fluid service and oil extraction and waste oil refining.
Capacity: Up to 700 m3 per hour Head: Up to 150 metres

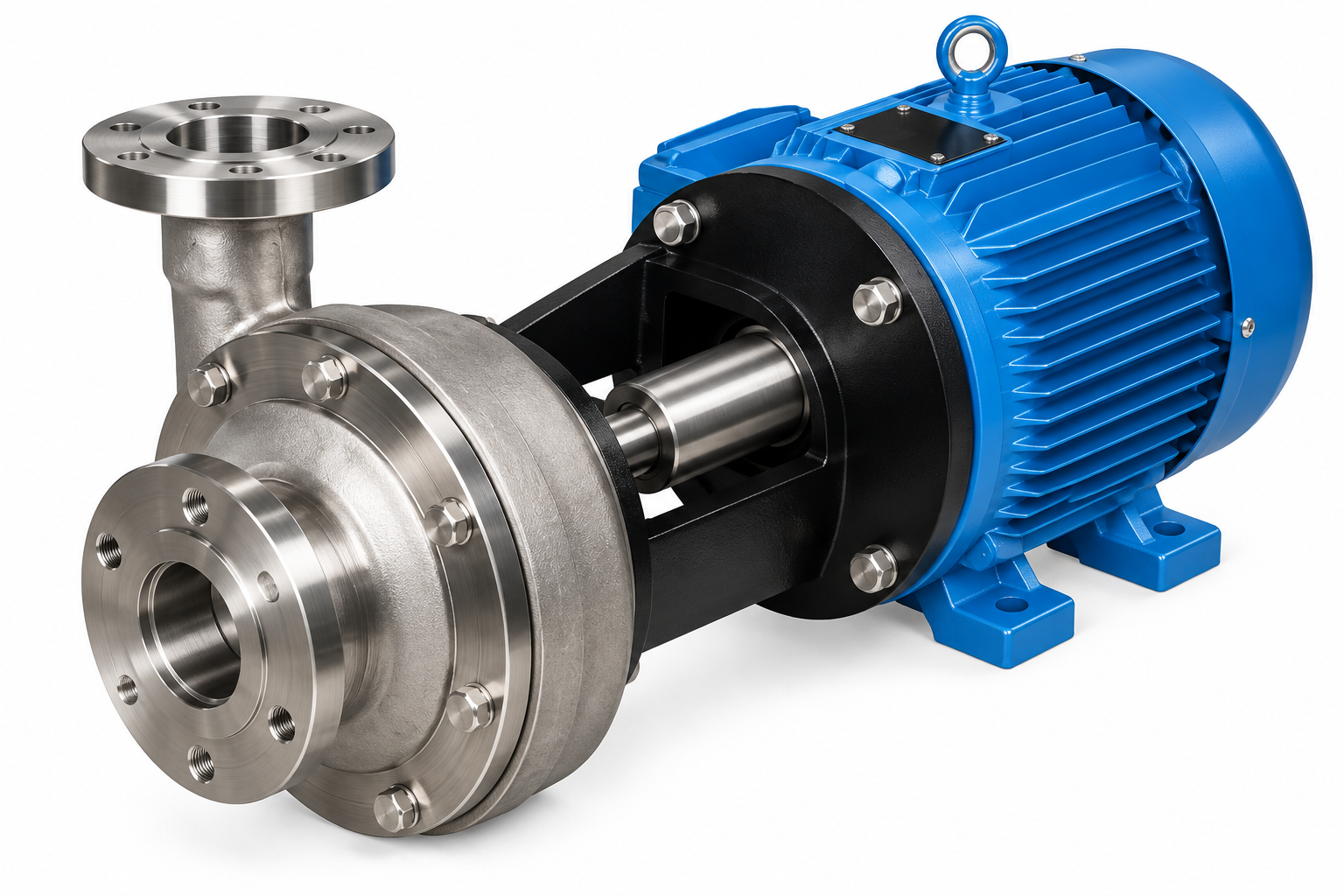

Our stainless-steel centrifugal pump range includes both monobloc and bare coupled pump configurations. These pumps are fabricated from SS 304 or SS 316 sheet, with all wetted parts in stainless steel construction throughout. The precise fabrication standards applied to these pumps make them well suited to chemical and process industry applications where product purity, hygiene or corrosion resistance requirements rule out cast iron alternatives.
The SS centrifugal pump is particularly valued in pharmaceutical, food and beverage, dye and pigment, and fine chemical applications where metallic contamination of the process fluid must be avoided and regular cleaning in place is required.

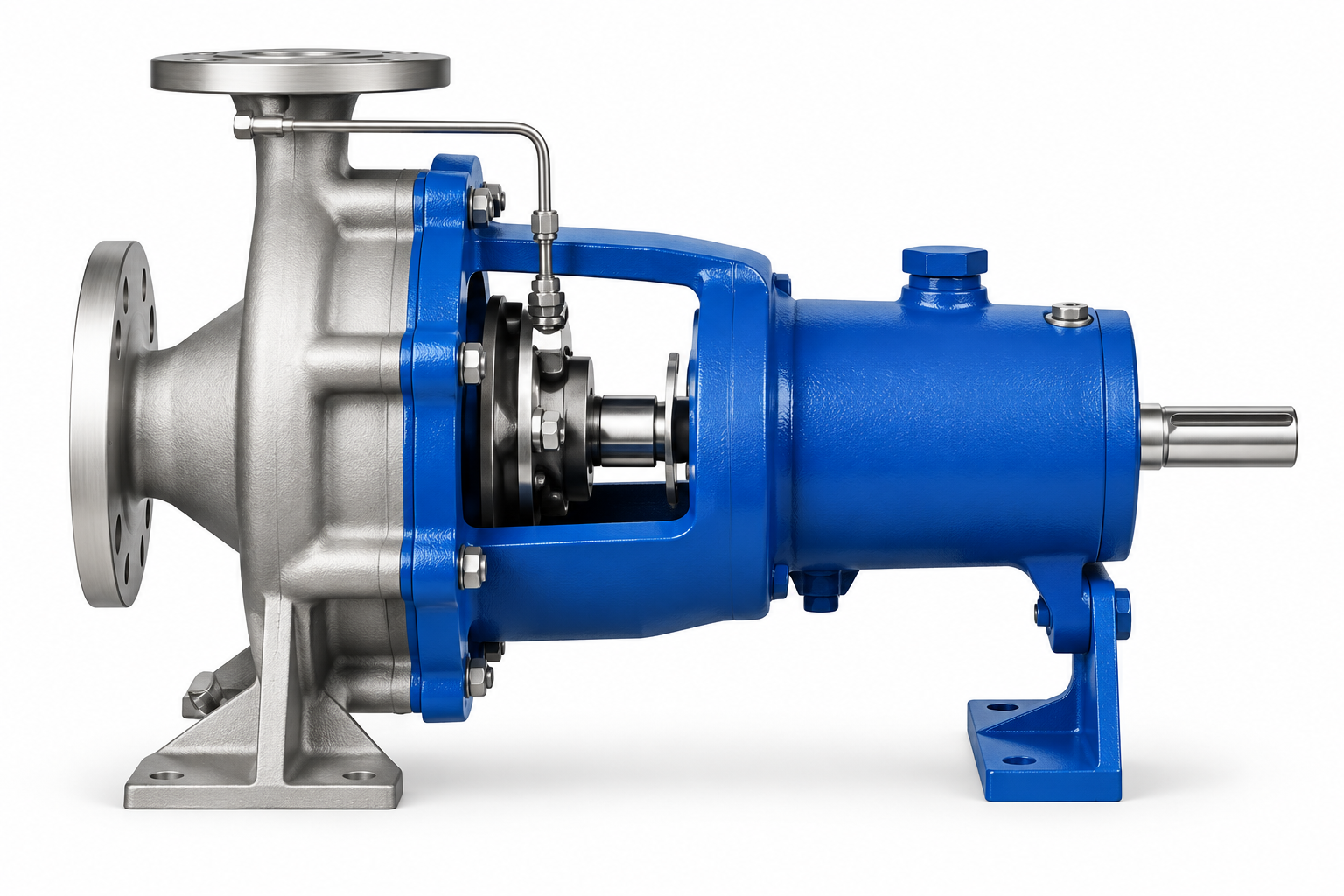

With thorough industrial knowledge, we are engaged in manufacturing and supplying a wide range of Impeller Pumps. These pumps are manufactured in compliance with the international quality standards. Customization of our pumps is also done by us to fulfil the needs of our valued clients. Moreover, clients can avail these pumps from us round the clock at market-leading prices.

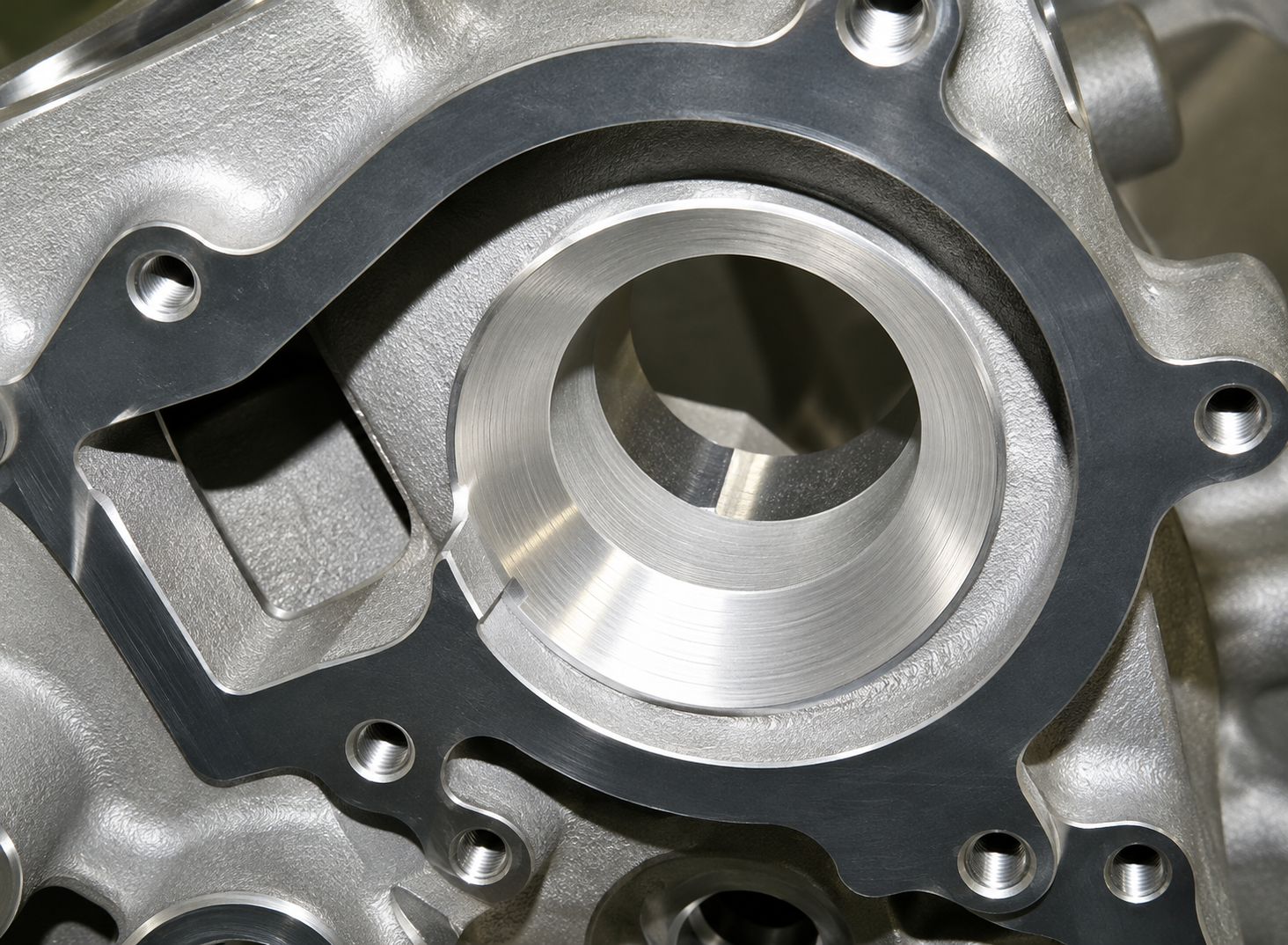

Our pump housing products are engineered by professionals with extensive expertise in fluid system design. Manufactured using premium grade raw materials and produced using advanced machining equipment, our pump housings provide the structural enclosure for the impeller and fluid passages, directing flow from suction to discharge while withstanding internal pressure and the mechanical loads imposed by the rotating assembly.
Our pump housings find application in water transfer, chemical service, general industrial fluid handling and specialty process plant duties where dimensional accuracy and material integrity are essential to system performance and longevity.

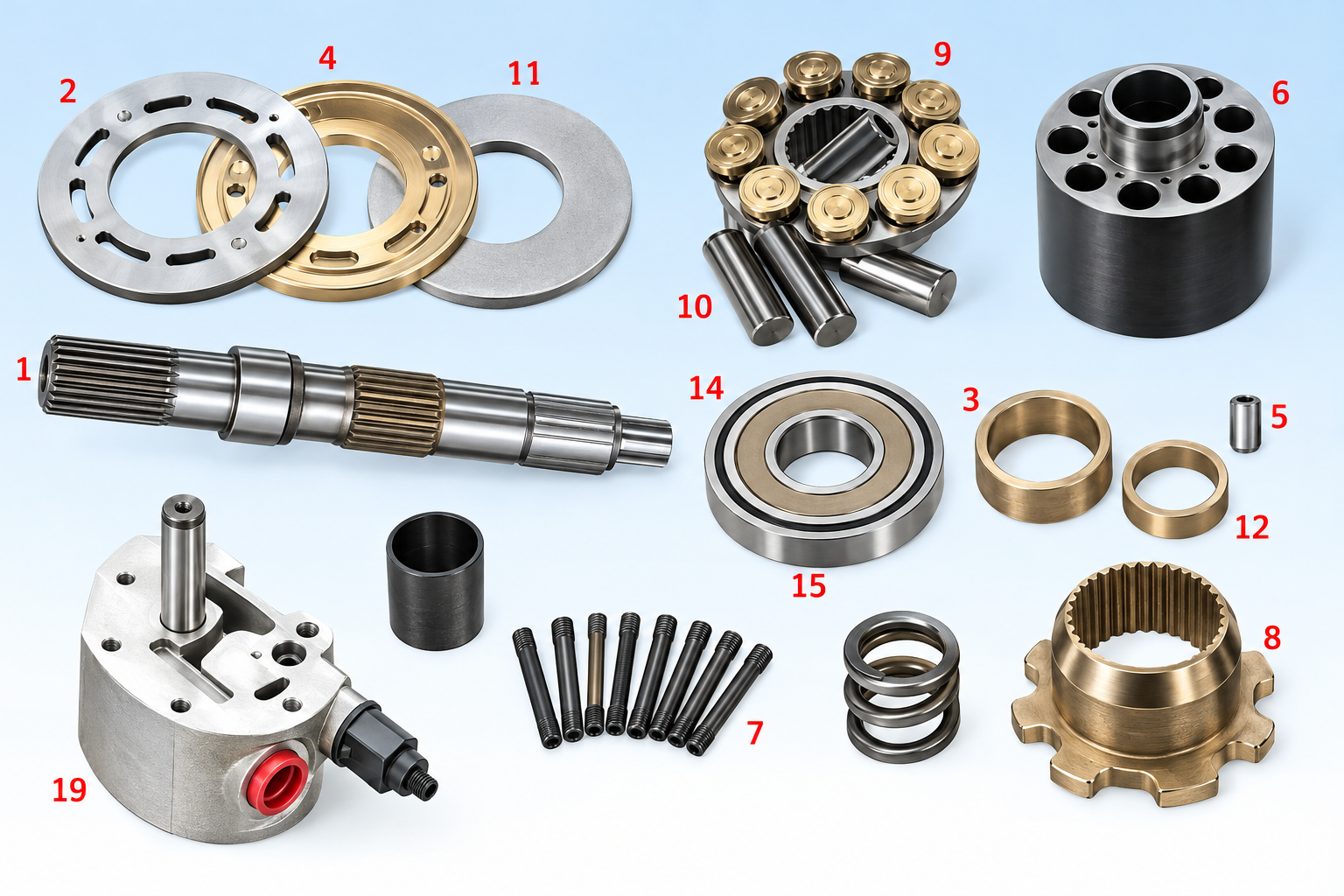

Our range of industrial pump components is manufactured under a quality driven production framework that ensures dimensional accuracy, material consistency and performance reliability across all components supplied. Available in a range of sizes suited to varied industrial requirements, our pump components are durable, structurally sound, corrosion resistant and dimensionally stable.
All components comply with defined industry parameters and are available in both standard and customised configurations, allowing procurement teams to source either off the shelf replacements or purpose made components for specific equipment.
Propeller Pumps is a recognised manufacturer and supplier of a comprehensive range of pump accessories. Manufactured using high quality raw materials in compliance with international standards, our pump accessories are valued for their durability, reliable performance, dimensional accuracy, corrosion resistance and ease of installation.
All components comply with defined industry parameters and are available in both standard and customised configurations, allowing procurement teams to source either off the shelf replacements or purpose made components for specific equipment.

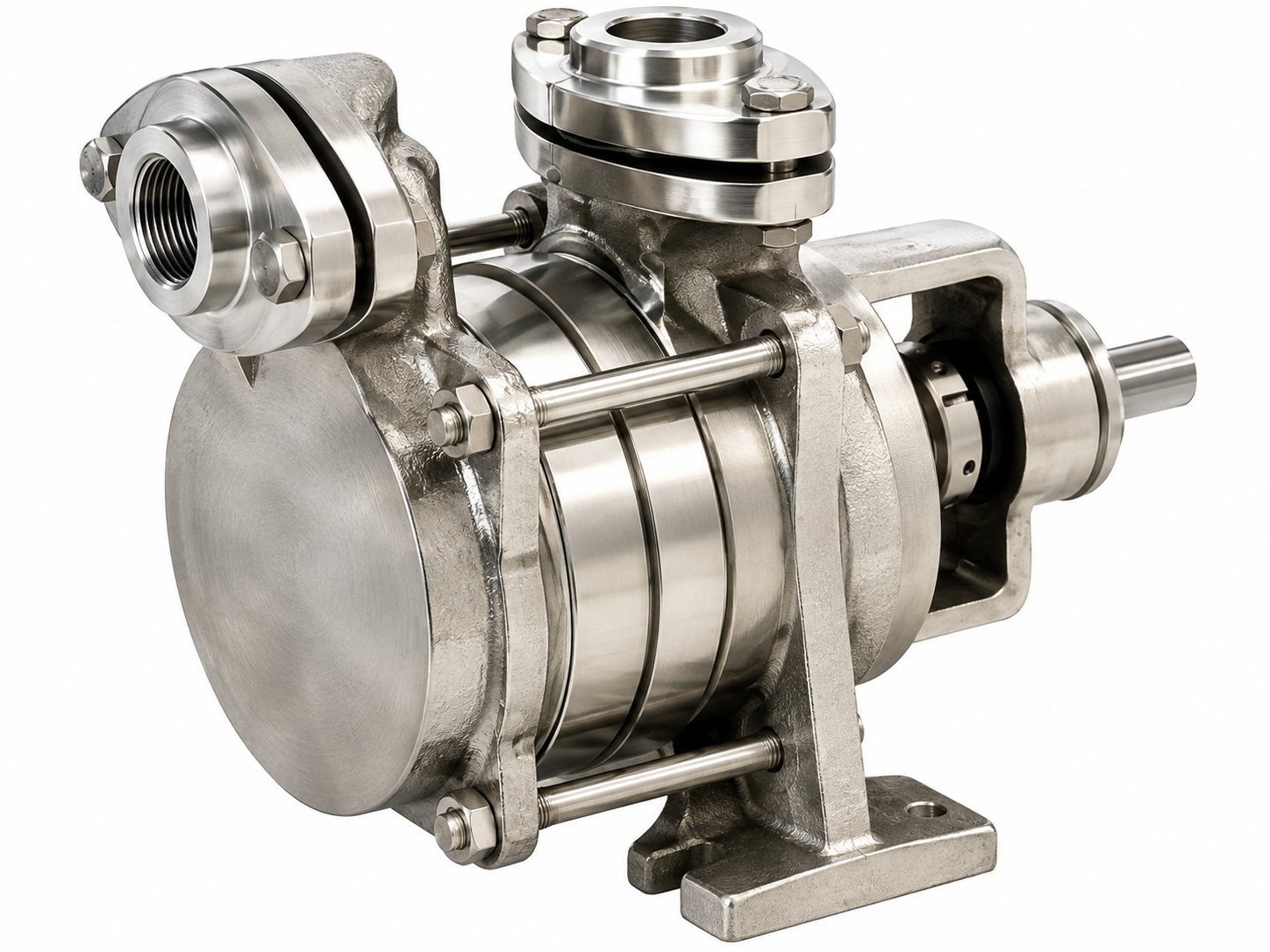

Our self-priming centripetal pump series is purpose designed for handling solvent and flammable liquids where conventional centrifugal pumps present operational or safety challenges. These pumps are available in gland seal and mechanical seal configurations to suit the specific sealing requirements and containment standards of each application.
The low operating speed of our centripetal pumps is a deliberate design feature, making them safe and appropriate for use with flammable fluids that are sensitive to heat or spark generation. The self-priming action eliminates the need for external priming systems, simplifying installation and reducing the footprint of the pump skid. A trolley type mounting is available for barrel loading and unloading applications where the pump needs to be portable and repositionable.
Head: Up to 60 metres
Flow Rate: Up to 10 cubic metres per hour
Operating Speed: 1450 RPM
Materials of Construction: Stainless steel and alloy
Applications for our self-priming centripetal pumps include petroleum product transfer, pharmaceutical production, barrel loading and unloading, chemical process plant service and general-purpose flammable liquid handling.
This range also covers applications previously referenced as slurry pumps, plastic pumps, corrosion resistant pumps, suction centrifugal pumps, stainless steel pumps, end suction pumps and plastic centrifugal pumps, with specific material and configuration options available on request.

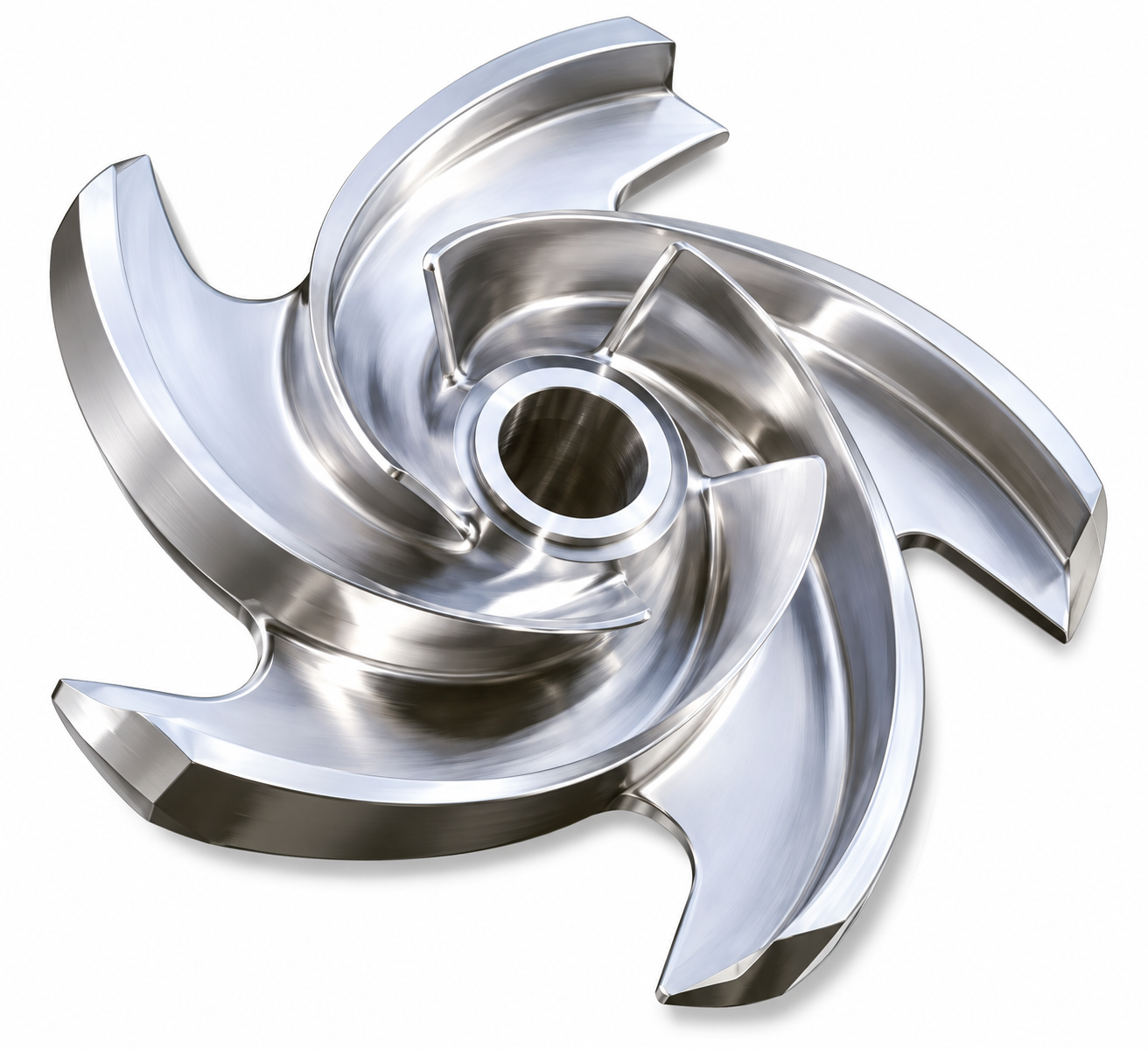

The impeller is the single most critical component in any centrifugal pump, responsible for converting the rotational energy of the drive motor into the kinetic energy and pressure rise that drives fluid through the system. The geometry, dimensional accuracy and material quality of the impeller determine the hydraulic efficiency, flow characteristics, head development and service life of the pump.
Propeller Pumps manufactures a comprehensive range of pump impellers to client design and specification, covering closed impellers, semi open impellers and open impellers in a wide range of materials including cast iron, cast steel, stainless steel SS304, stainless steel SS316, Alloy 20, CD4MCu, Hastelloy B, Hastelloy C, polypropylene and other engineering polymers. The selection between closed, semi open and open impeller types is determined by the fluid being handled, the solid content of the process stream and the hydraulic performance requirements of the application.
Closed impellers, which have front and rear shrouds enclosing the vanes, provide the highest hydraulic efficiency and are used for clean fluid service where maximum performance is required. Semi open impellers, with a rear shroud and open front face, are used for fluids containing soft solids or fibrous material where the open front face prevents blockage. Open impellers, with no shrouds, are used for heavily solid laden slurries where a fully enclosed impeller would block and for duties where easy inspection and cleaning of the impeller is required.
All impellers are precision manufactured to the dimensional tolerances required for correct running clearance in the pump casing, balanced to the specified standard to eliminate vibration and finished to the surface quality required for the intended service. Custom impellers manufactured to customer supplied drawings and specifications are a core part of our service.

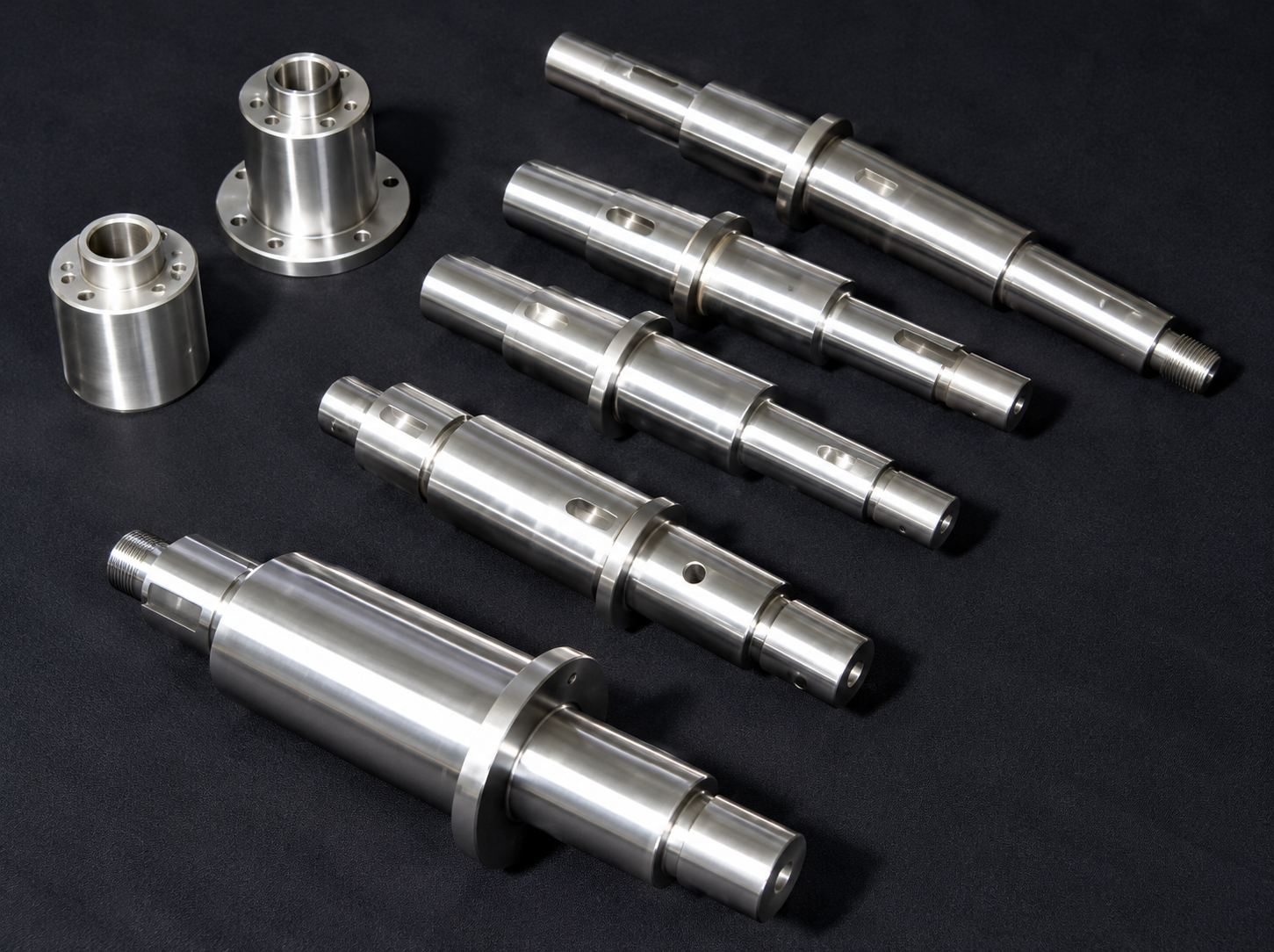

The pump shaft transmits drive torque from the motor to the impeller while supporting the mechanical loads generated by hydraulic forces, bearing reactions and seal friction throughout the full operating range of the pump. Shaft design and material selection are critical to pump reliability, as shaft failure or excessive deflection under load results in seal damage, bearing wear and impeller running clearance problems that progressively degrade pump performance and ultimately lead to unplanned shutdown.
Propeller Pumps manufactures pump shafts to precise dimensional specifications, covering a wide range of shaft diameters, lengths and connection configurations to match the requirements of diverse pump types and sizes. Our pump shafts are manufactured from premium quality materials including carbon steel, stainless steel grades SS304 and SS316, duplex stainless steel and other alloy steels as required by the service conditions of the pump.
Each shaft is machined to dimensional tolerances that ensure correct bearing fit, correct impeller mounting, correct seal housing alignment and the correct running clearances throughout the pump assembly. Shafts are inspected for straightness, dimensional accuracy and surface finish before dispatch to confirm that they will perform correctly in service without inducing vibration or misalignment in the assembled pump.
Our shaft manufacturing capability covers replacement shafts for our own pump range as well as custom shafts manufactured to client drawings for third party pump equipment, providing a flexible supply source for maintenance teams requiring non-standard shaft components.
The pump sleeve is a replaceable cylindrical liner fitted over the pump shaft in the region where the shaft passes through the stuffing box or seal housing. The purpose of the pump sleeve is to protect the shaft from direct contact with the pumped fluid, gland packing or mechanical seal components, preventing the shaft from being damaged by corrosion, erosion or mechanical wear in this critical region.
By fitting a correctly specified pump sleeve over the shaft, the shaft material can be selected for mechanical strength and machinability rather than for chemical resistance to the pumped fluid. When the sleeve eventually shows wear or corrosion damage from service exposure, it can be replaced at a fraction of the cost of replacing the complete shaft, making sleeve replacement the economical maintenance solution for pumps operating in aggressive chemical or abrasive service.
Propeller Pumps manufactures pump sleeves from the finest quality raw materials sourced from vendors of established reputation, ensuring that every sleeve supplied meets the dimensional accuracy, surface finish and material specification required for reliable performance in service. Our pump sleeves are available in a comprehensive range of materials including stainless steel grades SS304 and SS316, Alloy 20, Hastelloy B and C, Duplex stainless, ceramic coated steel and engineering polymers, allowing the sleeve material to be correctly matched to the chemical and abrasive conditions of the specific service environment.
Custom sleeve dimensions are manufactured to client specifications, covering non-standard shaft diameters, unusual sleeve lengths and special groove or shoulder configurations required for particular pump designs.
Sourcing pump components from Propeller Pumps provides customers with a single, technically competent supply source that understands the relationship between individual pump components and the overall pump assembly performance. This system understanding, combined with manufacturing precision and material expertise, produces accessories that perform correctly in service rather than merely fitting the dimensional envelope of the replacement part.
Our manufacturing experience across impellers, shafts and sleeves for our own complete pump range gives us direct insight into the design intent and performance requirements of each component, allowing us to replicate or improve upon the original specification when manufacturing replacement or upgrade parts.
Custom component manufacturing capability allows us to serve customers requiring non-standard parts that are not available from the original equipment manufacturer or have been discontinued, providing a cost effective solution to component availability problems that would otherwise force complete pump replacement.
Propeller Pumps manufactures custom pump accessories to client design, drawing and specification. Custom capabilities cover impellers in nonstandard materials, sizes and configurations, pump shafts in non-standard dimensions or alloy specifications, and pump sleeves in non-standard materials, diameters or lengths.
Customers requiring custom pump accessories should provide dimensional drawings, material specifications and any relevant service condition data, and our manufacturing team will confirm capability, lead time and pricing for the required components.
specialising in high-flow, low-head pump solutions
pumps configured to your specific flow rate, head, fluid type, and material requirement
from standard CS/MS to exotic duplex and alloy grades for corrosive service
supplying to UAE, Saudi Arabia, Singapore, Indonesia, Philippines, Egypt, Ethiopia, Nigeria, Kenya, Russia, Uzbekistan, Kazakhstan and more
nationwide coverage for maintenance, spare parts, and technical support
trusted by industrial clients across India and 15+ countries worldwide
