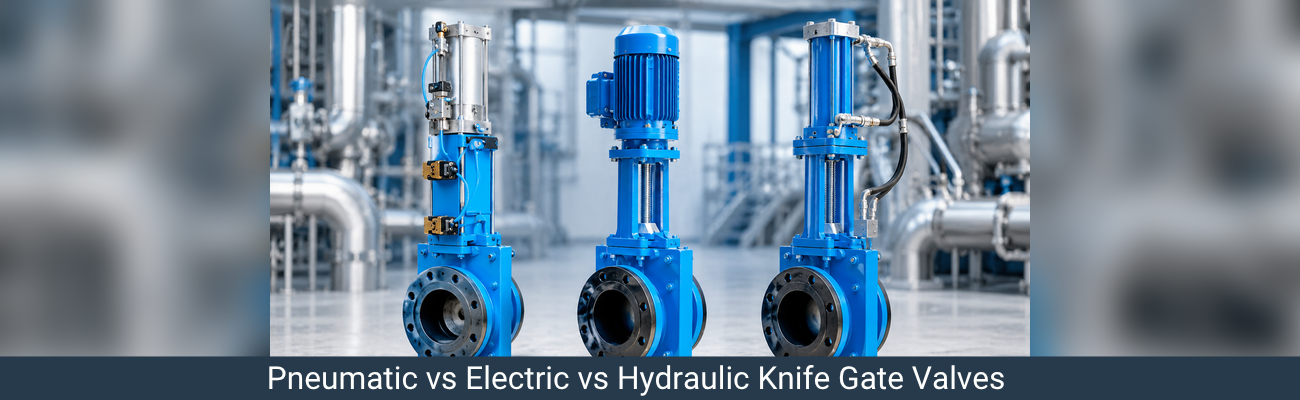

Pneumatic vs Electric vs Hydraulic Knife Gate Valve: A Complete Selection Guide

Actuation method is one of the most important decisions when specifying a knife gate valve for automated service. Whether you choose pneumatic, electric, or hydraulic actuation affects operating speed, control precision, utility requirements, and long term reliability. This guide compares all three actuation types so you can match the right system to your process.

Why Actuation Matters in Knife Gate Valve Selection

A knife gate valve can be operated manually, but most industrial installations use an actuator for remote, repetitive, or automated operation. The actuator type determines how fast the gate opens and closes, how much force it can apply, how it fails during a power or air loss, and what utilities need to be available at the valve location. Choosing the wrong actuation method can lead to slow cycle times, higher maintenance costs, or safety risks in critical isolation service.

What Is a Pneumatic Knife Gate Valve?

A pneumatic knife gate valve uses compressed air to drive a piston actuator that raises and lowers the gate. Pneumatic actuators are widely used because they offer fast cycle times, simple construction, and reliable fail safe options such as spring return to close or open on air loss. They are common in slurry, mining, and wastewater applications where a compressed air supply is already available on site.

What Is an Electric Knife Gate Valve?

An electric knife gate valve uses a motorized actuator, typically with a gearbox, to drive the gate through a lead screw or similar mechanism. Electric actuation is preferred where compressed air is not readily available, or where precise positioning and integration with a plant control system is required. Electric actuators can provide accurate throttling control in addition to simple open and close functions.

What Is a Hydraulic Knife Gate Valve?

A hydraulic knife gate valve uses pressurized hydraulic fluid to move a cylinder actuator connected to the gate. Hydraulic actuation delivers the highest force output among the three options, making it suitable for large diameter valves, high pressure slurry lines, and applications where the gate must overcome significant resistance from packed or settled solids.

How Pneumatic, Electric and Hydraulic Actuators Work

• All three actuator types connect to the valve stem through a yoke or bracket, translating actuator motion directly into gate travel.

Pneumatic vs Electric vs Hydraulic Knife Gate Valve: Key Differences

Parameter	Pneumatic	Electric	Hydraulic
Power source	Compressed air	Electrical supply	Hydraulic fluid under pressure
Force output	Moderate	Moderate	High
Cycle speed	Fast	Moderate	Moderate to fast
Control precision	Basic open/close, limited throttling	Precise positioning and throttling	Precise with proportional valves
Fail safe options	Spring return standard	Battery backup or manual override	Accumulator backup
Typical cost	Lower	Moderate	Higher
Best suited for	Frequent cycling, standard duty	Remote control, precise positioning	Large valves, high resistance service

Operating Speed and Control

Pneumatic actuators generally offer the fastest open and close times, often completing a full stroke in a few seconds, which makes them well suited for frequent cycling applications such as batch discharge or slurry diversion. Electric actuators are typically slower but provide superior positioning accuracy, useful when a valve needs to modulate flow rather than simply isolate it. Hydraulic actuators fall between the two in speed but deliver the most consistent force throughout the stroke, even against heavy or compacted media.

Automation and Remote Operation

All three actuation types support remote automation through a plant control system, but electric actuators integrate most naturally with SCADA and PLC based systems since they typically include built in positioners and feedback signals. Pneumatic systems require solenoid valves and air preparation equipment for remote control, while hydraulic systems need a power unit with pumps, reservoirs, and directional control valves, adding complexity but also delivering the most robust performance in demanding automated processes.

Power and Utility Requirements

• Pneumatic: requires a clean, dry compressed air supply, typically already available in most industrial plants.
• Electric: requires a stable electrical supply, single phase or three phase depending on actuator size, with no compressed air or hydraulic infrastructure needed.
• Hydraulic: requires a dedicated hydraulic power unit, which adds upfront cost and maintenance but is often justified for large or high force valves.

Maintenance and Reliability Considerations

Pneumatic actuators are mechanically simple, with fewer components to fail, but depend on consistent air quality, since moisture or contamination can degrade seals over time. Electric actuators require periodic gearbox lubrication and motor inspection but avoid the wear issues associated with compressed air quality. Hydraulic actuators demand the most attention, including fluid quality monitoring, seal inspection, and pump maintenance, but they also tend to have the longest service life under continuous heavy duty operation when properly maintained.

Safety and Fail-Safe Options

Pneumatic actuators most commonly use spring return mechanisms to fail closed or fail open automatically on loss of air pressure, an important safety feature in isolation service. Electric actuators typically rely on battery backup systems or manual handwheel override during a power failure, which can introduce a short delay in emergency response. Hydraulic actuators use accumulators to maintain fail safe function even during a momentary loss of pump pressure, offering a reliable safety margin for critical, high force applications.

Which Actuator Is Best for Slurry and Wastewater Applications?

For general slurry and wastewater duty with standard diameter valves, pneumatic actuation is usually the most cost effective and reliable choice, particularly where compressed air is already part of the plant infrastructure. For larger diameter valves handling dense slurry, tailings, or bulk material where the gate must overcome significant resistance, hydraulic actuation is often the better performer. Electric actuation suits installations where precise flow control, remote positioning feedback, or integration with a digital control system takes priority over raw force or cycle speed.

Pneumatic vs Electric vs Hydraulic Knife Gate Valve Comparison Table

Feature	Pneumatic	Electric	Hydraulic
Ideal application	Frequent cycling, standard slurry lines	Precise control, remote monitoring	Large or high resistance valves
Installation complexity	Low, needs air supply	Low, needs electrical supply	High, needs hydraulic power unit
Response time	Fast	Moderate	Moderate to fast
Long term maintenance	Air quality dependent	Motor and gearbox servicing	Fluid and seal monitoring
Force capability	Moderate	Moderate	High

How to Choose the Right Actuation System

• Determine the valve size and the force required to shear through the process media, since larger valves in dense slurry often need hydraulic force.
• Check what utilities are already available at the installation site, compressed air, electrical power, or hydraulic infrastructure.
• Decide whether the application needs simple open and close operation or precise throttling control.
• Evaluate cycle frequency, since pneumatic actuators generally handle frequent cycling with less wear than other types.
• Review fail safe requirements for the process, particularly for isolation valves in critical or hazardous service.
• Consult applicable standards, such as MSS SP 81 for knife gate valve design and relevant actuator standards referenced by bodies like ISA, to confirm the selected actuation method meets your process safety requirements.

Selecting the right actuation type is as important as selecting the valve body and seat material. A pneumatic, electric, or hydraulic knife gate valve should be specified based on the actual force, speed, and control requirements of your process rather than a default choice, ensuring reliable performance and lower lifecycle cost across the installation.
